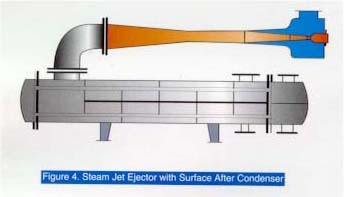

Single-stage KI-WON Steam Jet Ejector
Single stage steam jet ejectors are designed to cover a suction pressure range from 760 to 75 mmHg absolute. The lower suction pressures are obtained by multi-stage steam jet ejectors.
¡¡
Design Factor
- Motive steam pressure & temperature
- Suction pressure
- Suction flow rate
- Suction temperature
- Molecular fraction & molecular weight of suction gas
- Discharge pressure
- Material construction
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
| STANDARD SIZES & DIMENSIONS | ||||||||
| MODEL | DIMENSIONS | CONNECTION SIZES | WEIGHT (kg) |
|||||
| A | B | C | D | MOTIVE | SUCTION | DISCHARGE | ||
| KW - 1E25 | 375 | 250 | 125 | 100 | 15A | 25A | 25A | 10 |
| KW - 1E40 | 475 | 350 | 125 | 100 | 20A | 40A | 40A | 15 |
| KW - 1E50 | 610 | 460 | 150 | 120 | 20A | 50A | 50A | 28 |
| KW - 1E65 | 775 | 600 | 175 | 120 | 25A | 65A | 65A | 32 |
| KW - 1E80 | 975 | 800 | 175 | 135 | 25A | 80A | 80A | 45 |
| KW - 1E100 | 1150 | 950 | 200 | 150 | 40A | 100A | 100 | 80 |
| KW - 1E150A | 1375 | 1150 | 225 | 200 | 50A | 150A | 150A | 120 |
| KW - 1E150B | 1525 | 1300 | 225 | 200 | 50A | 150A | 150A | 150 |
¡¡
¡¡
¡¡
